Product Description:

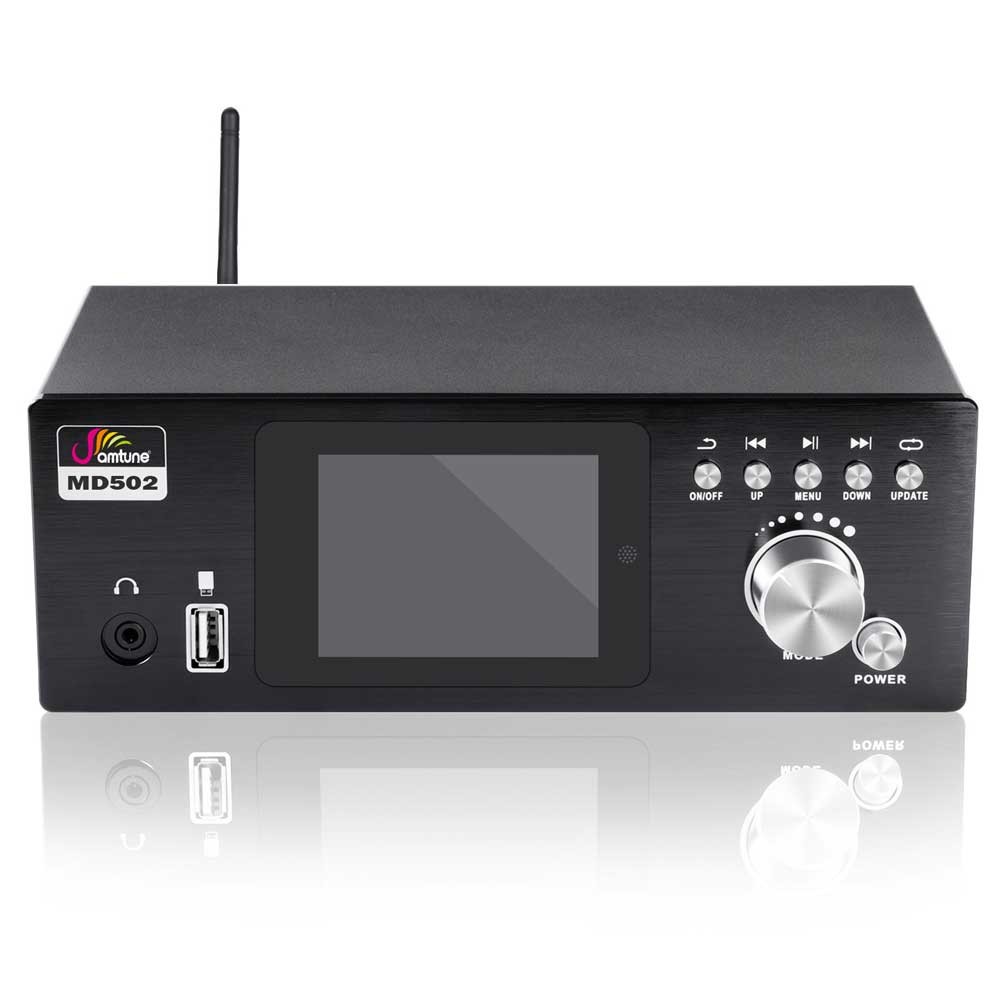

AM-MD502 DSD Digital audio turntable 5.1 channels

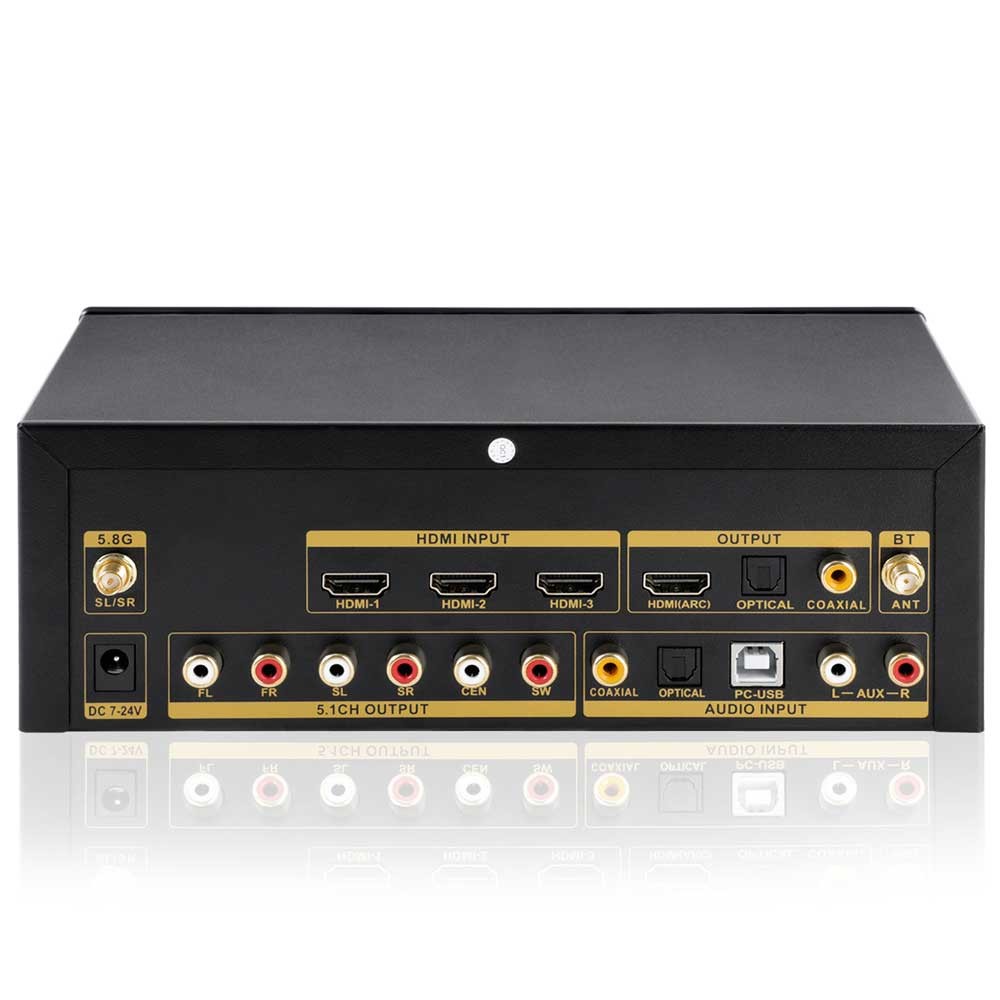

Versatile Input Options: Features three HDMI inputs, Coaxial and Optical inputs, PC-USB, AUX, Bluetooth 5.0, USB 2.0, and SD card inputs for flexible connectivity.

Comprehensive Output: Supports HDMI (ARC) output, Optical and Coaxial outputs, and 5.1-channel analog audio output simultaneously for seamless integration with various audio setups.

High-Resolution HDMI: HDMI resolution supports up to 4Kx2K@60hz with HDMI2.0b and HDCP 2.3 compliance, including support for 3D and HDR content.

Extensive USB Player Support: Compatible with various audio formats including ISO, DSD, DTS, WAV, FLAC, AAC, MP3, and more, offering versatile playback options.

Intuitive Song Selection: USB player enables easy selection between folder-based and digital song playback for convenient access to music.

Advanced Audio Decoding: Supports high-quality audio decoding with DSD256/1bit and PCM 768KHz/32bit capabilities for superior sound reproduction.

Enhanced Bluetooth Connectivity: Bluetooth support up to version 5.1 with a range of 15 meters and compatibility with LDAC, aptX-HD, aptX-Adaptive, aptX-LL, aptX, AAC, SBC for high-fidelity wireless audio streaming.

Flexible Output Modes: Offers multiple output modes including 5.1ch, 4.1ch, 3.1ch, 2.1ch, and 2.0ch to accommodate different audio setups and preferences.

Automatic Source Detection: Automatically detects input sources and performs hardware decode for DTS/AC3 and software decode for PCM to ensure optimal audio output.

Memory Function: Features memory function to retain previous settings including the last played song, input mode, volume level, and function in case of power outage or shutdown.

Customizable Volume Control: Allows adjustment of global and mono volume via knob or remote, with each channel supporting 50 levels of adjustment for precise sound tuning.

User-Friendly Display: Equipped with a 3.2'' color LCD display for intuitive navigation and easy access to settings and information.

Wireless Surround Transmission: Optional support for 5.8G wireless surround transmission (available in 5.8G version) for immersive audio experiences without the hassle of cables.

Convenient Power Input: Powered by DC 12V input for easy compatibility with various power sources and setups.
