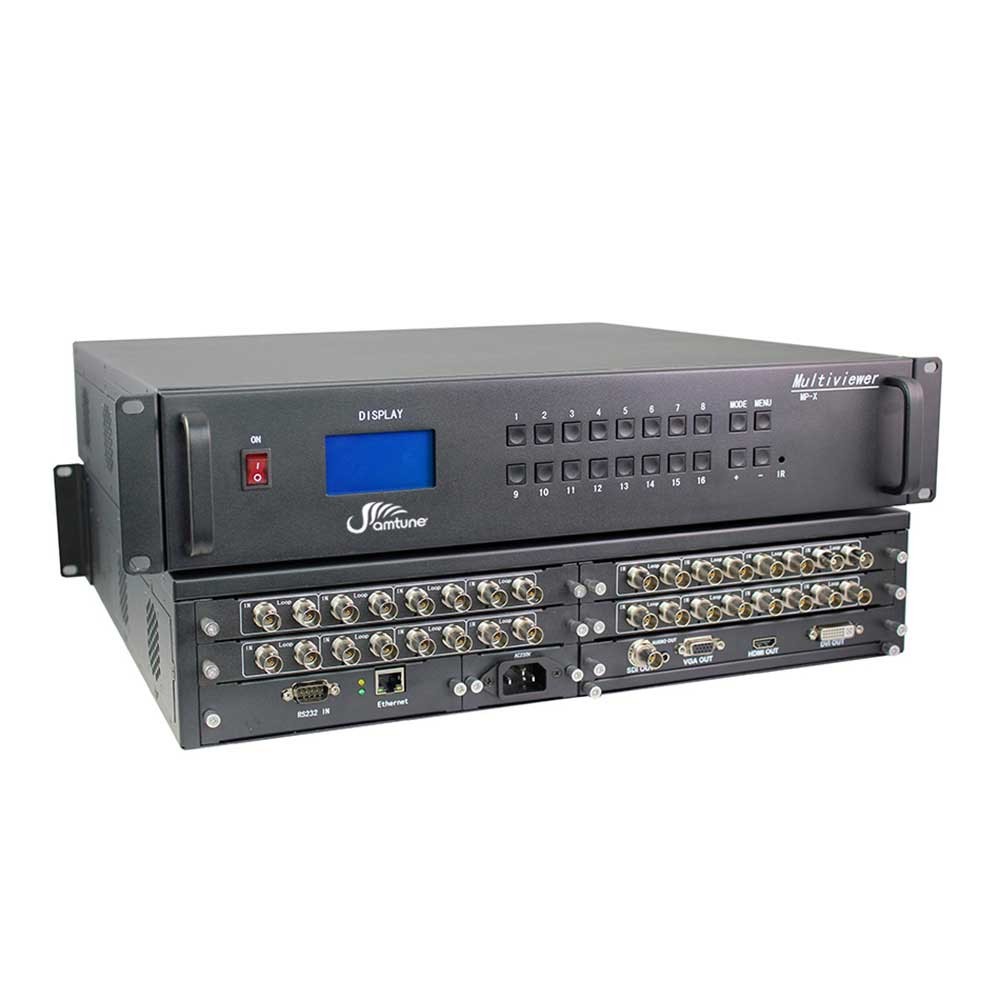

AM-PXS16 SDI 16 Channels Multi-Viewer


Brief introduction

Explore the AM-PXS16 high-definition multi-video multi-viewer, a professional graphics processing device engineered to seamlessly combine multiple video signals into a single high-definition output. With customizable window sizing, display positioning, and video scaling capabilities, users can tailor their viewing experience to precise specifications. Experience uniform HD video output with the AM-PXS16 multi-viewer.


Feature:

  • Flexible Card Structure: Each card accommodates 4 inputs, with 1U chassis supporting 2 inputs and 2U chassis accommodating 16 inputs.

  • Versatile Input Support: Compatible with CVBS, HDMI (DVI), VGA (YPbPr), and SDI inputs, allowing for mixed input configurations.

  • High-Quality Image Processing: Internal 10-bit processing ensures true color reproduction for exceptional visual fidelity.

  • Precise Input Specifications: VGA (YPbPr) input supports resolutions up to UXGA@75Hz/WUXGA@60Hz and offers Composite-Sync and Sync-on-Green (SOG) support.

  • HDMI (DVI) Compatibility: Supports HDMI1.4, HDCP1.2, and Deep Color with 12-bit YCC4:4:4, ensuring compatibility with various standards.

  • Extensive SDI Compatibility: Supports 3G/HD/SD-SDI at rates from 143Mbps to 2.97Gbps, compatible with SMPTE and ITU R BT serial video standards.

  • User-Friendly Operation: Quick operation via local buttons and a red remote control, with additional support for software control via RS232 and Ethernet interfaces.

  • Enhanced Security: Features power-off site protection for added reliability in diverse environments.

  • Customizable Display: Supports custom screen sizes, layouts, and scene saving for personalized viewing experiences.

  • 4K Output Capability: Offers support for 4K (3840x2160/30) output (note: output board and 2K output are not compatible).


Parameters


Model series

AM-PXV16

Input signal(optional)

HDMI/SDI/DVI/VGA/AV/YPbPr

Input resolution

4k, 1080p,1024x768,commonly used resolutions

Output signal format

HDMI/SDI/DVI/VGA/AV/YPbPr

Output resolution

Up to 1920*1200/60HZ, 4k

System control software

Special control software

Power Supply

Redundant power supply 110-220VAC, 50/60Hz

Working temperature

-20°C——60°C

Working Humidity

5-95%

Case specification

2U/4Ustandard rack mount chassis

Serial Control Interface

RS-232,9-pin female, Type-D

Working time

365*7*24hrs



CVBS input

Impedance

75Ω

Level

1Vp-p

TV System

Adaptive NTSC, PAL

Interface type

BNC

YPbPr input

Impedance

75Ω

Level

0.7V

Resolution

480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA input

Impedance

75Ω

Level

0.7V

Resolution

Common resolution of VESA, 640x480@60Hz~1920x1200@60Hz

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI input

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Interface type

Type A 19pin HDMI or DVI-D

SDI input

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio

Interface type

BNC
