  • Dante AES67 Audio Network Transmission Module 2x2 4x4
Dante AES67 Audio Network Transmission Module 2x2 4x4

Dante AES67 Audio Network Transmission Module 2x2 4x4

Amtune aes67 2x2,4x4modular
Dante/QSC/Dolby compatible
I2S/TDM reserved interface
Mini size

Product Description:

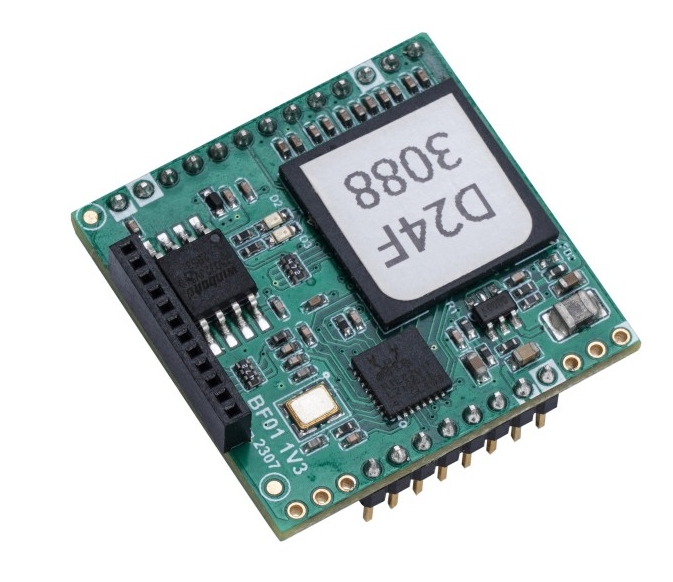

AM-BF01



Aes67 4X4 MATRIX MODULAR

· Module Dimensions: 29 mm x 28.4 mm

· Supports the AES67 protocol and can be interconnected with Dante using AGC software.

· Equipped with an onboard 100 Mbps Ethernet PHY chip, it can be connected to an external transformer for networking.

· Pin definitions are the same as A404, allowing shared baseboards.

· Features a 4x4 channel configuration with support for sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.

· Supports delay times of 2 ms, 1 ms, 0.5 ms, and 0.25 ms.

· Enables IIC (lic) configuration for peripheral chips.

· Utilizes a single FPGA solution, making it suitable for applications such as amplifiers and microphones.
