Product Description:

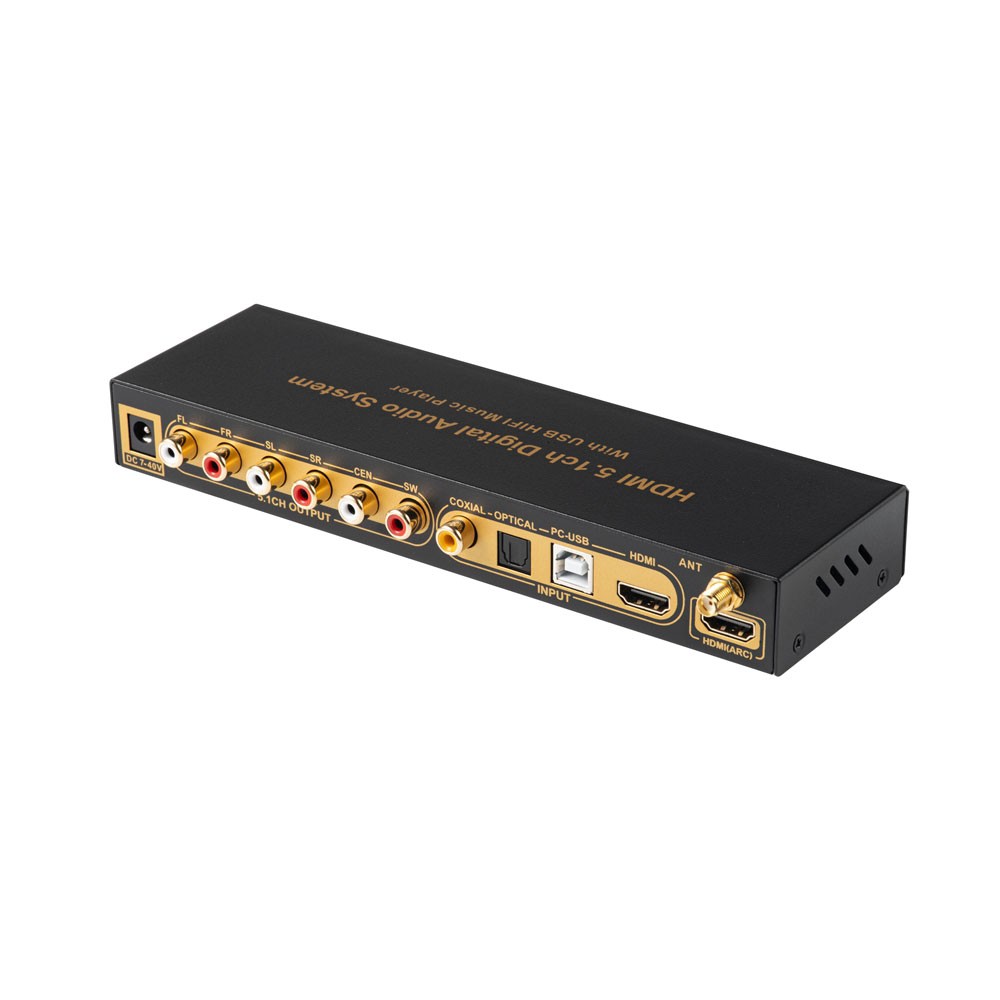

5.1CH Audio Converter Decoder DAC DTS AC3 FLAC APE 4K 60Hz HDMI ARC

AM-D851


FEATURES:

1: Support HDMI + ARC+Coaxial +Optical +PC-USB +Bluetooth+USB 2.0 input,You can switch different signal sources randomy via Button or Remote

2: HDMI resolution up to 4Kx2K@30hz,support 3D

3: Supported audio farmat :DTS、DTS-ES、DTS-WAV、FLAC、APE、HDCD、AAC、WMV、MP3、M4A etc.

4: Support 5.1ch/2.0ch output mode,FL/FR active when 2.0ch output mode.

5: Support Button or IR remote switch input source , infomation will be displayed on LED.

6: The Bluetooth version is 5.0,the distance support 15m.

7: Supporting Button or IR adjust VOLOME, supporting 20 levels fine tuning.

8: The power-off memory function, automatically switch to the last used signal channel, USB play memory before the power-off.

9: Users can upgrade firmware when manufacturers have updated

10: The use of DC 12V / 1A external power adapter power supply, wide voltage can use DC (7-40V) power supply.


SPECIFICATIONS:

HDMI VersionHDMI 1.4 & HDCP 1.4HDMI Bandwidth340MHz
HDMI Baudrate10.2GbpsHDMI TDMS0.5~1.5Vpp(TTL)
HDMI DDC5Vpp(TTL)HDMI Cable length≤20m standard cable
DSP sample32~192 KHzDSP Baudrate16~24 Bit
Digtal Level0.1~1Vp-p5.1ch output Level≥1.5V RMS(1kHz@0dB)
S/N@0dB292dBTHD≤0.03%
Frequency20Hz~20KHzMaxPower≤200mA
Bluetooth VerV5.0Bluetooth distance15m
Operating Temp-10~+60℃Operating Humidity10~90%RH(non-condensin )
Srorage Temp-20~+60℃Srorage Humidity5~95%RH(non-condensin)
Product Size202x103x53(mm)Product Weight0.7kg
Power AdapterInput:AC 100V-240V 50/60Hz ; Output:DC 12V/1A
